Beer tanks – special vessels for production of beer or cider and operations with carbonated beverages

We produce all kinds of brewery beer tanks. Our beer production tanks are suitable for the production of all alcoholic carbonated beverages like beer, cider, sparkling wine etc.

Beer tanks are non-pressure or the pressure vessel made of food stainless steel (AISI 304 or AISI 316) intended for production of beer and similar carbonated alcoholic beverages, beer storage, and other handling of beer.

We equip the beer tanks with a standard equipment or special equipment according of customer’s requirements . For example for the production of cider or production less common types of beer, according to the production process, which can not be realized with conventional standard equipment of beer tanks.

The tab sheet on this site shows all kinds of beer tanks that are in our production program, and their technical description. Technical specifications and prices of manufactured standard beer tanks are described herein. The ability to customize the accessories, equipment, dimensions, prices and other parameters of beer tanks according of individual requirements of particular customers are commonplace.

Although our beer tanks are primarily optimized for beer production, we also produce them in modifications for the efficient production of other drinks – especially wine and carbonated cider.

Beer tanks – overview of manufactured vessels and devices for the beer production and other operations with beer, cider, wine

Beer tanks – description and navigation to products pages

.. Pages with a detailed description and prices of selected types the beer tanks will be displayed by clicking on the links.

Product	Description	Design	Insulation	Cooling system	Max. pressure	Info
	Tanks for the primary beer fermentation process
OFV	Opened fermentation vats - uncovered beer fermentation vessels in the shape of the tub are among the traditional beer production technology, especially of the pilsner type. The advantage is the possibility of collecting "blanket" of dead yeast on the surface of beer.		PUR foam > 40mm	Cooling by water or glycol	0.0bar	Technical parameters and prices
CFT	Cylindrical fermentation tanks - Stainless steel non-pressure cylindrical containers for the main fermentation of beer, pressure. They are fitted with an inspection door, sanitizing shower and optional sight glass for monitoring of the fermentation process.		PUR foam > 40mm	Cooling by water or glycol	0.0bar	Technical parameters and prices
CCT-SNP	Cylindrically-conical simplified non-pressure fermentation tanks - Stainless steel containers of cylindrical shape with a conical bottom for the main fermentation of beer, non-pressurized. They are equipped with an inspection door, sanitizing shower and armatures for discharge of yeast and beer. Easy separation of yeast from beer.		Default = without isolation, but an isolation with the special self-adhesive tank foam is possible.	Cooling by water or glycol	0.0bar	Technical parameters and prices
	Tanks for the secondary beer fermentation process
MLT	Maturation tanks - Cylindrical containers which are designed for the second stage of beer fermentation - maturation. Those tanks are equipped with an inspection door, sanitary shower, adjustable pressure valve and fittings for filling and draining beer. We produce them on demand as a versatile tanks that combine function both fermentation and maturation tanks and also pressure bottling tanks - the combi tanks.		Non-insulated tanks cooled by air or insulated tanks cooled by glycol.	Cooling by air or by water with glycol	LP version : from 0bar up to 1.5bar / HP version : from 0bar up to 3.0bar.	Technical parameters and prices
	Tanks for both primary and secondary beer fermentation processes - combi beer tanks
CCT-C/SLP/SHP	Cylindrically-conical pressure tanks - Stainless steel containers with cylindrical body and conical bottom designed for both fermentation and maturation. They are equipped with adjustable pressure valve, an inspection door, sanitary shower and armatures for discharge yeast and beer. Easy separation of yeast from beer.		CCF tanks with or without isolation.	Cooling by water or glycol	SLP/SHP version 0-1.5bar / CLASSIC version 0-3bar.	Technical parameters and prices
CCT-M	Modular cylindrically-conical pressure tanks - Very versatile vessels which enable to arbitrarily assemble the tank for production beer, cider or wine. Designed for all operations like fermentation, maturation, carbonization, flotation, filtration, bottling processes in configuration that is currently required with respect to the intended use. The current configuration of the tank can be changed at any time by customer.		CCF tanks always with isolation PUR.	Cooling by water or glycol	SLP/SHP version 0.5bar-3.0bar.	Technical parameters and prices
	Tanks for the preparation of the finished beer for filling in the sales packaging - Beer storage tanks
BBT	Cylindrical beer tanks - Stainless steel cylindrical containers with adjustable pressure, dedicated only for temporary storage of beer and preparation beer for filling into bottles or kegs. They are equipped with an inspection door, sanitizing shower, adjustable pressure valve, vacuum valves and armatures for filling and draining of beer. We produce them on demand also as universal tanks , which combines two functions : beer maturation tanks and tanks for bottling beer.		Non-insulated tanks cooled by air or insulated tanks cooled by glycol.	Cooling by air or by water with glycol	2.0 up to 3.0bar	Technical parameters and prices
	Tanks for the storage of beer and serving of beer
DBT	Serving tanks - Tanks for the storage of the finished beer in restaurants and for ease serving of beer into glasses using a conventional air compressor. To avoid contacting beer with air in the tanks are equipped with removable plastic bags, so there is not necessary to use any special inert gases.		Non-insulated tanks cooled by air or insulated tanks cooled by glycol.	Cooling by air or by water with glycol	1.5bar up to 3.0bar	Technical parameters and prices
	Special sets and devices with tanks for beer production
FUIC	FUIC - is the compact fermentation and maturation unit which is fully equipped for beer (or cider, wine) fermentation and maturation process, including the independent cooler and temperature measuring and control system. The FUIC is also available for preparation and testing samples of new beer types in breweries. An expanding of the brewery for more fermenters takes only several minutes and whole fermentation and maturation system is immediatelly available.		CCF tanks SLP/SHP without isolation (optionally with adhesive insulating foam), CCF tanks CLASSIC are insulated with PUR.	Cooling by water or glycol	SLP/SHP version 0bar up to 1.5bar / CLASSIC version 0bar up to 3bar.	Technical parameters and prices

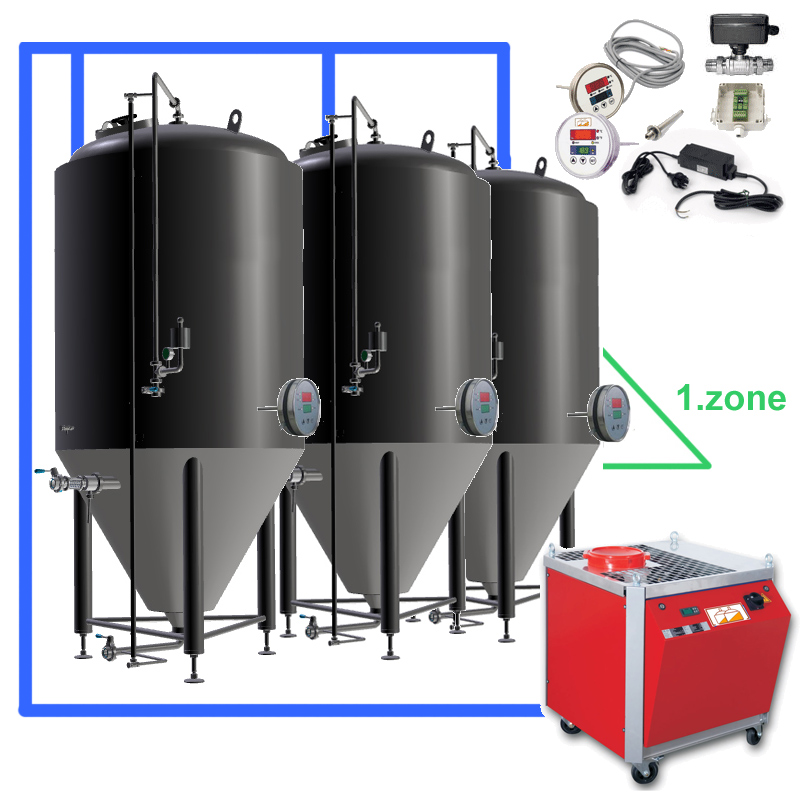

CFS	Complete Fermentation System - The CFS is a complete set of equipment which is needed for the beer (or cider, wine) fermentation and maturation process. Each fermentation set includes one or more cylindrical-conical fermenters, compact glycol cooler, glycol pump and full temperature measuring and control system. CCF fermenters are equipped with cooling duplicators and full fitting set for the professional beer or cider production process.		CCF tanks SLP/SHP without isolation (optionally with adhesive insulating foam), CCF tanks CLASSIC are insulated with PUR.	Cooling by water or glycol	SLP/SHP version 0bar up to 1.5bar / CLASSIC version 0 up to 3bar.	Technical parameters and prices
