ESG – Electric steam generators

Electric steam generators for steam heating of brewhouses

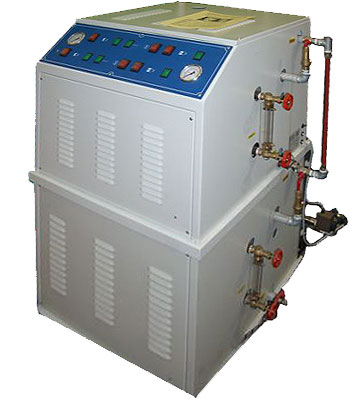

Electrical steam generatorElectric steam generators are an appropriate solution especially for smaller microbreweries to medium size (1.5 HL – 20 HL). The main reason for the choice of electric steam generator is particularly the need to use hot steam for other devices in the brewery (e.g. sanitizing kegs) or the need for rapid sanitation of pipe distribution by steam.
To our microbreweries we deliver a power steam generator including all necessary accessories and installation work.

Electric steam generator typically contains:

  • The electric steam generator
  • The stainless steel tank of filling / condensing water with a pump, controling of the water level and temperature, water valves, shut-off and safety valves
  • Water treatment plant – full automatic with filter
  • Dosing pump
  • Safety valve 7 bar
  • Adjustable pressure switch of output steam
  • Built-in electrical panel
  • Passport for pressure equipment + initial inspection document for pressure vessels
  • Electrical inspection document
  • Connection to electricity distribution, water supply and sewerage
  • Passport of pressure equipment







Electric hot steam generators – price list and technical description :

  • MXSG-12CSF : Electric steam generator GHIDINI MAXI-24 6-12kW / 8-18kg/hr | pressure from 4.5 to 7.0 bar | Complete system on the frameMXSG-12CSF : Electric steam generator GHIDINI MAXI-24 6-12kW / 8-18kg/hr | pressure from 4.5 to 7.0 bar | Complete system on the frame
    Automatic electric hot steam-generator - the complete system on the frame : with capacity 12 kW (7.8-15.6 kg of hot steam per hour) - if returned condensate is not reused with capacity 12 kW (9.0-18.0 kg of hot steam per hour) - if returned condensate is reused The compact build pre-assembled and tested steam generator with all recommended accessories. All is delivered on the stainless steel frame, with all internal connections, ready-to-use. The compact system includes a complete water treatment, a condensation recuperation system and a boiler sludge draining system (cooling tank for desilting the steam generator boiler) . This… Read more »
  • TSE-240 : Electric steam generator 120-240 kW | 156-312 kg/hr | 11.5 barTSE-240 : Electric steam generator 120-240 kW | 156-312 kg/hr | 11.5 bar
    Automatic electric hot steam-generator with capacity from 120 kW up to 240 kW (from 156 up to 312 kg of hot steam per hour) Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 11.5 bar. This steam-generator is available with eight heaters (8x 30 kW) . The steam-generator shell is manufactured in accordance to the current PED CE regulations (PED 2014/68/EU).   Made in EU Read more »
  • MXSG-30 : Electric steam generator GHIDINI MAXI-60 15-30kW / 22-45kg/hr | pressure from 4.5 to 8.5 barMXSG-30 : Electric steam generator GHIDINI MAXI-60 15-30kW / 22-45kg/hr | pressure from 4.5 to 8.5 bar
    Automatic electric hot steam-generator with capacity from 15 kW up to 30 kW (from 20.5 up to 39 kg of hot steam per hour) - if returned condensate is not reused (the condesate recovery set is not included) with capacity from 15 kW up to 30 kW (from 22.5 up to 45 kg of hot steam per hour) - if returned condensate is reused (the condesate recovery set is included) Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 4.5 or… Read more »
  • MXSG-30CSF : Electric steam generator GHIDINI MAXI-60 15-30kW / 20-45kg/hr | pressure from 4.5 to 8.5 bar | Complete system on the frameMXSG-30CSF : Electric steam generator GHIDINI MAXI-60 15-30kW / 20-45kg/hr | pressure from 4.5 to 8.5 bar | Complete system on the frame
    Automatic electric hot steam-generator - the complete system on the frame with capacity from 15 kW up to 30 kW (from 20.5 up to 39 kg of hot steam per hour) - if returned condensate is not reused with capacity from 15 kW up to 30 kW (from 22.5 up to 45 kg of hot steam per hour) - if returned condensate is reused The compact build pre-assembled and tested steam generator with all recommended accessories. All is delivered on the stainless steel frame, with all internal connections, ready-to-use. The compact system includes a complete water treatment, a condensation recuperation… Read more »
  • TSE-600 : Electric steam generator 300-600 kW | 390-780 kg/hr | 5,5-11.5 barTSE-600 : Electric steam generator 300-600 kW | 390-780 kg/hr | 5,5-11.5 bar
    Automatic electric hot steam-generator with capacity from 300 kW up to 600 kW (from 390 up to 780 kg of hot steam per hour) Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 5.5 bar (version 5B) or from 1 to 11.5 bar (version 11B). This steam-generator is available with eight heaters (20x 30 kW) . The steam-generator shell is manufactured in accordance to the current PED CE regulations (PED 2014/68/EU).   Made in EU Read more »
  • MESG-06S : Micro electric steam generator 6kW 0.5bar (8 kg/h)MESG-06S : Micro electric steam generator 6kW 0.5bar (8 kg/h)
    Powerful steam generator with heating capacity of 6 kW for extra heavy continuous load operation. These robust models in a stainless steel case have exceptional steam generating capabilities thanks to the unique Teflon technology on the heating spirals. Output capacity is up to 8 kg of steam per hour at pressure 0.5 bar and temperature 111°C. Read more »
  • MESG-09S : Micro electric steam generator 9kW 0.5bar (12 kg/h)MESG-09S : Micro electric steam generator 9kW 0.5bar (12 kg/h)
    Powerful steam generator with heating capacity of 9 kW for extra heavy continuous load operation. These robust models in a stainless steel case have exceptional steam generating capabilities thanks to the unique Teflon technology on the heating spirals. Output capacity is up to 12 kg of steam per hour at pressure 0.5 bar and temperature 111°C. Read more »
  • MESG-12S : Micro electric steam generator 12kW 0.5bar (15 kg/h)MESG-12S : Micro electric steam generator 12kW 0.5bar (15 kg/h)
    Powerful steam generator with heating capacity of 12 kW for extra heavy continuous load operation. These robust models in a stainless steel case have exceptional steam generating capabilities thanks to the unique Teflon technology on the heating spirals. Output capacity is up to 15 kg of steam per hour at pressure 0.5 bar and temperature 111°C. Read more »
  • MESG-15S : Micro electric steam generator 15kW 0.5bar (20 kg/h)MESG-15S : Micro electric steam generator 15kW 0.5bar (20 kg/h)
    Powerful steam generator with heating capacity of 15 kW for extra heavy continuous load operation. These robust models in a stainless steel case have exceptional steam generating capabilities thanks to the unique Teflon technology on the heating spirals. Output capacity is up to 20 kg of steam per hour at pressure 0.5 bar and temperature 111°C. Read more »
  • MESG-18S : Micro electric steam generator 18kW 0.5bar (24 kg/h)MESG-18S : Micro electric steam generator 18kW 0.5bar (24 kg/h)
    Powerful steam generator with heating capacity of 18 kW for extra heavy continuous load operation. These robust models in a stainless steel case have exceptional steam generating capabilities thanks to the unique Teflon technology on the heating spirals. Output capacity is up to 24 kg of steam per hour at pressure 0.5 bar and temperature 111°C. Read more »
