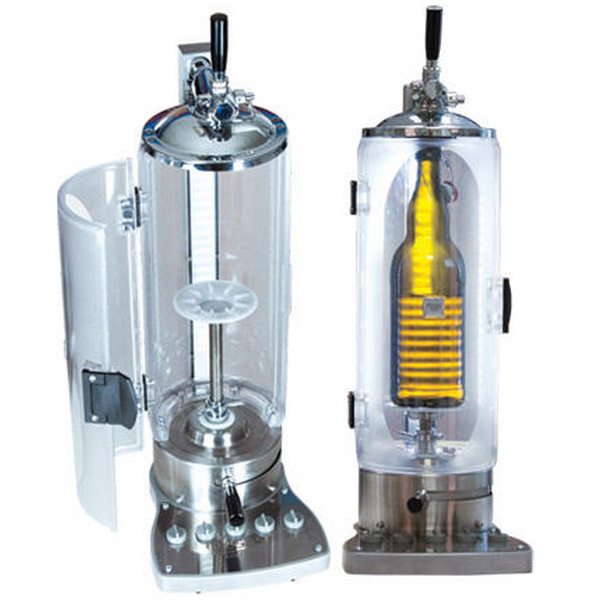

Manual bottle filler 30 to 60 bottles per hour
Fill beer to glass bottles with the simple bottle filler
Simple filler consists of one or several devices for filling glass bottles at 2 liters per minute.
After a worker unpacks empty bottles from the packaging, puts the bottle on filling tap, starts filling procedure and then takes full bottles closed with lids and stores them in selling boxes. All the bottles are washed and sanitized before filling.
All parts and fasteners are made from chrome-plated brass and stainless steel. This will increase resistance of the system’s wear and ensure maximum operating reliability (while ensuring regular cleaning procedures).
Operation procedure of the BFM-30 systems differs from a conventional beer tap as beer is dispensed in CO2 environment and CO2 supply to the bottle is needed. However, it just requires a 5-minute training for operators to understand the filling procedure. With practice it becomes only better and filling rate considerably increases. The normal filling rate is 45 seconds for 1.5 ltr bottle. No need to buy spare parts. A one-time expenditure for the purchase of the equipment is returned quickly and soon turns into profit.
Benefits of bottling with BFM-30
- Negligible waste beer – BFM-30 uses a unique system that allows the user to determine the amount of foam. Therefore, the user can reduce the waste up to 2-0%, while 98-100% of the product runs from each keg.
- High speed performance – 2 liters per 60 seconds -BFM-30 manual system uses the same principle beer bottling as large factories around the world – the method of back pressure. This method ensures that the bottles are filled in the same manner that provides automatic filling machines only – no foam and speed two liters per sixty seconds.
- Many types of bottles – BFM-30 gives the user the ability to use a wide variety of sizes and shapes of bottles. This device meets the individual needs of each company.
- Space saving – BFM-30 is a compact system that is easy to install on any horizontal surface (table or bar in the brewery) – the needed space is only 350×350 mm, it adapts to every environment.
- Easy operation – BFM-30 requires only a 15-minute training for each employee. The system works like a conventional beer tap, so you can easily use every right.
Equipment for the manual filling beverages into the bottles :
- CBF4-600 : Semi-automatic counterpressure bottle filler (up to 600 bottles per hour)Compact manual semi-automatic counterpressure filler with 4 filling heads and touch display. Designed to isobaric filling carbonated or non-carbonated beverages into glass bottles. Capacity up to 600 bottles per hour (depends on foamicity of a drink). Perfect for breweries, carbonated cider makers, lemonade producers etc. The bottle filling machine is produced in EU from materials friendly with food - stainless steel, polyethylene, silicone. We are an authorized sales partner of the European producer. Read more »
- CBF8-1200 : Semi-automatic counterpressure bottle filler / up to 1200 bottles per hourCompact manual semi-automatic counterpressure filler with 8 filling heads and touch display. Designed to isobaric filling carbonated or non-carbonated beverages into glass bottles. Capacity up to 1200 bottles per hour (depends on foamicity of a drink). Perfect for breweries, carbonated cider makers, lemonade producers etc. The bottle filling machine is produced in EU from materials friendly with food - stainless steel, polyethylene, silicone. The photos show the bottle filling unit with only 4 filling heads We are an authorized sales partner of the European producer. Read more »
- BFIN-2 : Bottle filling isobaric needle – the Nukatap stainless steel counter pressure filler (KegLand KL21760)The counter-pressure bottling machine is a system for fast, non-foaming bottling of beer and other foamy beverages from kegs into bottles. It uses a back pressure method that reduces foaming when bottling beer. Read more »
- BFIN-3 : Bottle filling isobaric needle – the BALL LOCK stainless steel counter pressure fillerThe counter-pressure bottling needle is a system with the BALL LOCK hose connectors for fast, non-foaming bottling of beer and other foamy beverages from kegs into bottles. It uses a back pressure method that reduces foaming when bottling beer. Read more »
- UF-GPSS : Sealing set for the Universal stainless steel counter pressure bottle filling valve for glass and PET bottlesSet of gaskets for the UF-GP2S Universal stainless steel counter pressure bottle filling valve for glass and PET bottles. Read more »

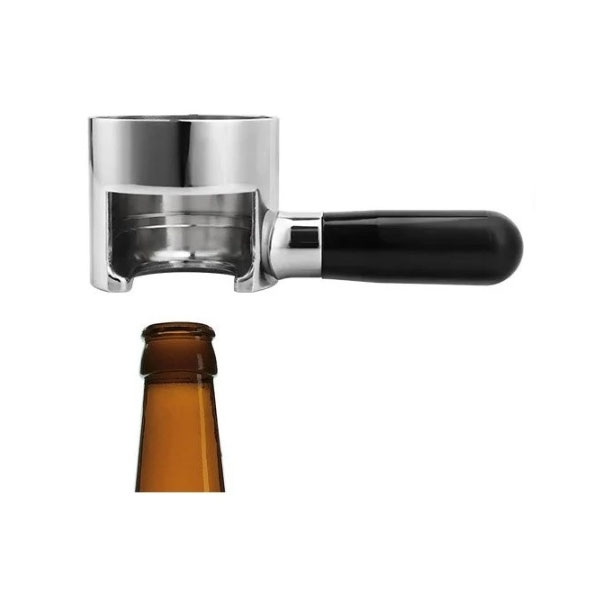

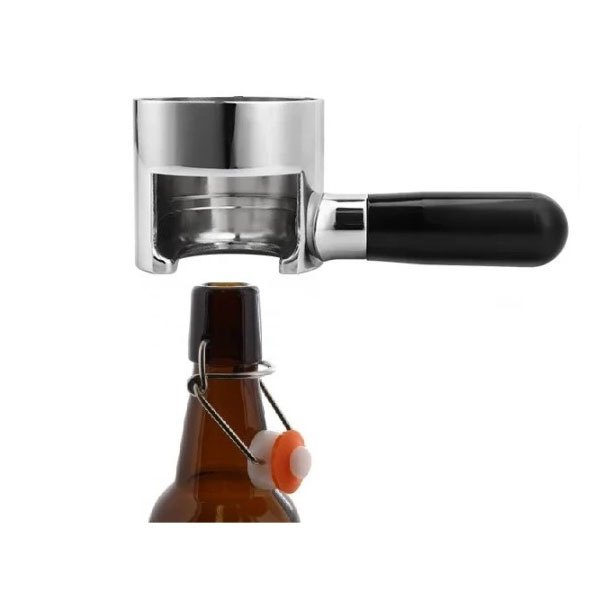

- UF-GPB2S : Universal stainless steel counter pressure bottle filling valve for glass and PET bottlesCounter-pressure stainless steel filler for glass and PET bottles. Universal filling system for fast, non-foaming bottling of beer and other carbonated beverages in a protective CO2 atmosphere. The delivery includes two heads for filling PET bottles and glass bottles of the NRW type. Simple connection to any tap stand using a standard 5/8″ thread. Read more »
- GBFU-6 : Semi-automatic gravity bottle filling machine with the buffer tankSemiautomatic filling machine with a buffer tank and an automatic pump designed to gravity filling non-carbonated beverages with low viscosity into glass or PET bottles. The machine has a built-in pump, controlled by level switches in the buffer tank. Filling level in the bottles is adjustable, bottle overfill protection. The filler requires minimal maintenance. Read more »
- GBBFU-6 : Semi-automatic gravity filling machine for bottles, Bag-In-Box and Pouch-Up bags, with the buffer tankSemiautomatic filling machine with a buffer tank and an automatic pump designed to gravity filling non-carbonated beverages with low viscosity into glass (or PET) bottles, Bag-In-Box and Pouch-Up bags. The machine has a built-in pump, controlled by level switches in the buffer tank. Filling level in the bottles is adjustable, bottle overfill protection. The filler requires minimal maintenance. Read more »
- GBFU-4F : Semi-automatic gravity bottle filling machine with the buffer tank and the plate filterSemiautomatic filling machine with the plate filter, the buffer tank and the automatic pump designed to filtration and gravity filling of non-carbonated beverages with low viscosity into glass or PET bottles. The machine has a built-in pump, controlled by level switches in the buffer tank. Filling level in the bottles is adjustable, bottle overfill protection. The filler requires minimal maintenance. Read more »
- CRCBF-1 : CANNULAR/RAPT Semi-automatic Can and Bottle Filler (Kegland KL37792)The CANNULAR/RAPT semi-automatic filler from Kegland is the ideal machine for filling beverages into cans and bottles. It is equipped with two adjustable stainless steel nozzles, which allow one nozzle to push the air out of the bottle/can with injected carbon dioxide and the other nozzle to fill the bottle/can exactly to the set level based on the measurements by the integrated pressure sensor. The supply includes an AC 230V / DC 24V source for safe low-voltage power supply of the charger. Read more »
